Combi Chain

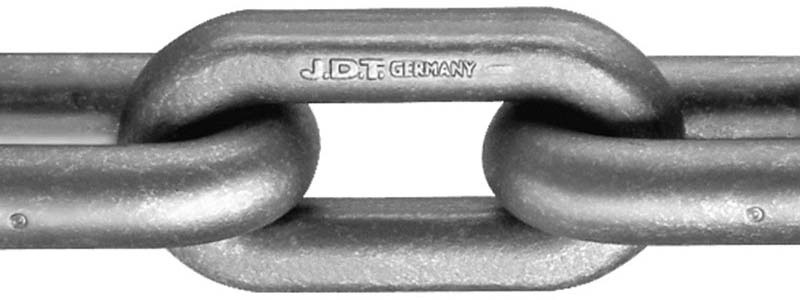

The Combi chain is a combination of forged vertical links and welded horizontal links and is used as a conveyor chain for mining.

Measurements and Weight

Nominal size	Diameter	Diameter	Pitch	Width round link	Width round link	Width F-link	Width F-link	Weight
d x t [mm]	dm [mm]	e max. [mm]	t	b₁ [mm]	b₂ [mm]	b₃ [mm]	b₄ [mm]	[kg/m]
38 x 137	38±1,1	42	137±1,4	44	123	42	110	29,5
38 x 146	38±1,1	42	146±1,5	44	123	42	110	27,6
42 x 137	42±1,1	48,5	137±1,4	48	135	46	115	37,0
42 x 146	42±1,1	48,5	146±1,5	48	135	46	115	35,6
48 x 144/160	48±1,5	56	144/160±1,5	62	163	56	127	48,2
48 x 152	48±1,5	53	152±1,6	58	160	52	127	47,0

Nominal size	Test force	Test force	Elongation at test force	Elongation at test force	Breaking force	Breaking force	Elongation of fracture	Elongation of fracture	Deflection	Deflection	Charpy-V-Test	Charpy-V-Test
d x t	TF Standard [kN]	TF HO [kN]	Max. Standard/HO [%]	Max. Standard/HO [%]	BF Standard [kN]	BF HO [kN]	A Standard [%]	A HO [%]	f Standard [mm]	f HO [mm]	KV Standard [J]	KV HO [J]
38 x 137	1360	1480	1,6	1,6	1850	2060	14	16	38	38	60	85
38 x 146	1360	1480	1,6	1,6	1850	2060	14	16	38	38	60	85
42 x 137	1660	1740	1,6	1,6	2300	2520	14	16	42	42	60	85
42 x 146	1660	1740	1,6	1,6	2300	2520	14	16	42	42	60	85
48 x 144/160	1850	2100	1,6	1,6	2900	3290	14	16	48	48	60	85
48 x 152	1900	2200	1,6	1,6	2900	3290	14	16	48	48	60	85
