F-Class® Chain

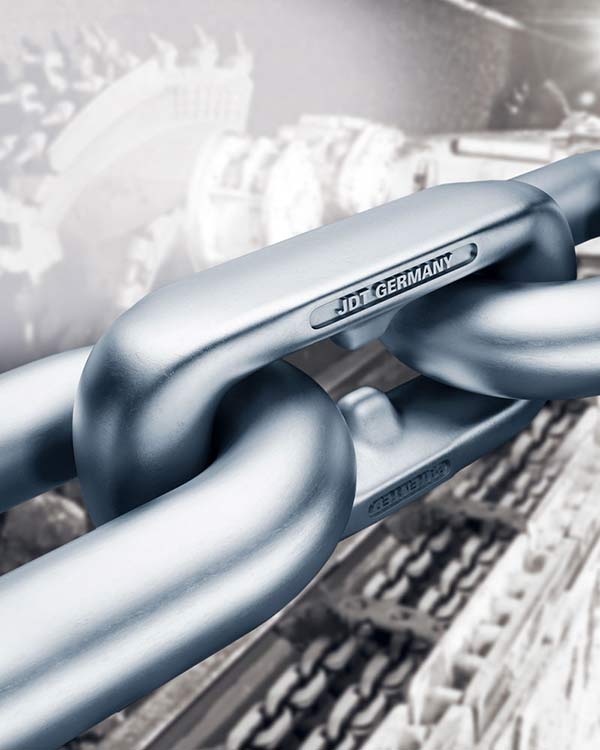

The F-Class chain FCC is a JDT designed and patented conveyor chain for mining applications. It consists of forged vertical links with JDT short studs and welded horizontal links. Due to the lower overall height of the vertical link, longer service lives can be achieved or the nominal size of the chain used can be increased, thus achieving better conveying performance.

F-Class® Chain

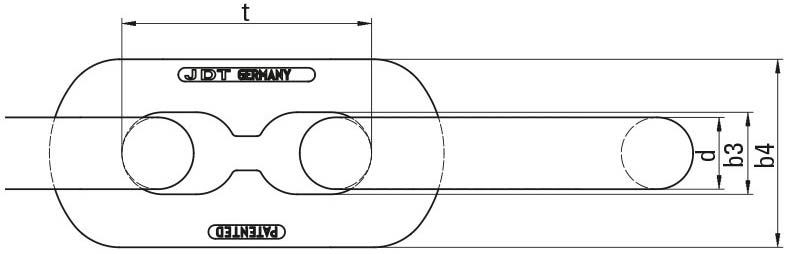

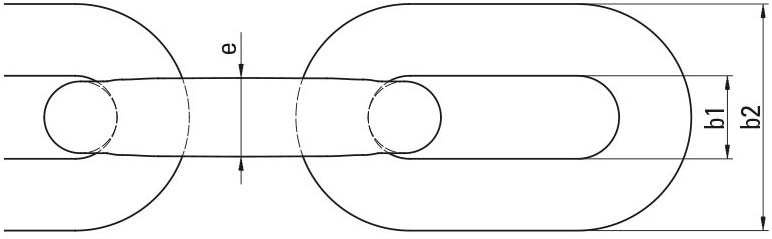

Measurements and Weight

Nominal size	Diameter	Thickness	Pitch	Round link	Round link	F-link	F-link	Weight
d/b₄ x t [mm]	dm [mm]	e max. [mm]	t [mm]	b₁ [mm]	b₂ [mm]	b₃ [mm]	b₄ [mm]	[kg/m]
22/60 x 86 C	22±0,7	24	86	26	73	27	60	8,9
26/60 x 92 A	26±0,8	30	92	30	87	28	60	12,9
26/64 x 92 C	26±0,8	29	92	30	87	30	64	13,3
30/75 x 108 C	30±0,9	34	108	34	99	33	75	17,6
34/94 x 126 W	34±1,0	36	126	38	111	38	94	22,5
38/99 x 126 C	38±1,1	40	126	44	123	42	99	30,0
38/99 x 137 W	38±1,1	40	137	44	123	42	99	28,9
42/109 x 137 A	42±1,1	46	137	48	135	47	109	35,4
42/109 x 137 C	42±1,1	46	137	48	135	47	109	35,4
42/109 x 146 W	42±1,1	46	146	48	135	47	109	34,1
48/115 x 152 C	48±1,4	58	152	62	160	52	115	46,3
48/115 x 144/160 W	48±1,4	58	144/163	62	163	52	115	45,5
52/127 x 170 C	52±1,7	63,5	170	64	172	56	127	53,8
56/131 x 187 A	56±1,9	65	187	72	184	60	131	60
60/135 x 181/197 A	60±2,0	66	181/197	75	192	63	135	66

Mechanical Properties

Nominal size	Test force	Test force	Breaking force	Breaking force	Charpy-V-Test	Charpy-V-Test	Possible use for
d x t _{d/b₄ x t} [mm]	TF Standard [kN]	TF HO [kN]	BF Standard [kN]	BF HO [kN]	KV Standard [J]	KV HO [J]	RL = Round Link FL = Flat Link
22/60 x 86 C	456	495	608	690	60	85	18 x 64 RL
26/60 x 92 A	570	637	750	850	60	85	18 x 64 RL
26/64 x 92 C	637	690	850	960	60	85	24 x 86 FL
30/75 x 108 C	848	920	1130	1270	60	85	26 x 92 FL
34/75 x 126 A	970	1090	1280	1450	60	85	26 x 92 FL
34/85 x 108 C	1090	1180	1450	1640	60	85	26 x 92 FL
34/94 x 126 W	1090	1180	1450	1640	60	85	34 x 126 FL
38/97 x 126 A	1210	1320	1720	1920	60	85	30 x 108 RL
38/99 x 126 C	1360	1480	1820	2040	60	85	34 x 126 FL
38/99 x 137 W	1360	1480	1820	2040	60	85	38 x 137 FL
42/109 x 137 A	1660	1740	2300	2520	60	85	34 x 126 RL
42/109 x 137 C	1660	1740	2300	2520	60	85	38 x 137 FL
42/109 x 146 W	1660	1740	2300	2520	60	85	42 x 146 FL
48/115 x 152 C	1900	2220	2900	3150	60	85	42 x 146 FL
48/115 x 144/160 W	1850	2100	2900	3150	60	85	48 x 144/160 FL
52/127 x 170 C	2170	2400	3500	3700	60	85	48 x 152 or 144/160 FL
56/131 x 187 A	2600	3000	4000	4300	60	85	48 x 152 or 144/160 FL
60/135 x 181/197 A	3000	3200	4500	5000	60	85
